Detailed Photo Gallery: McLane Briggs & Stratton Commercial Edger
Explore the heavy-duty American steel construction and precise mechanical details of the 100-Series walk-behind edger. These high-resolution images highlight the Briggs & Stratton XR550 power plant, our patented dual-front-wheel chassis, and the versatile cutter head.

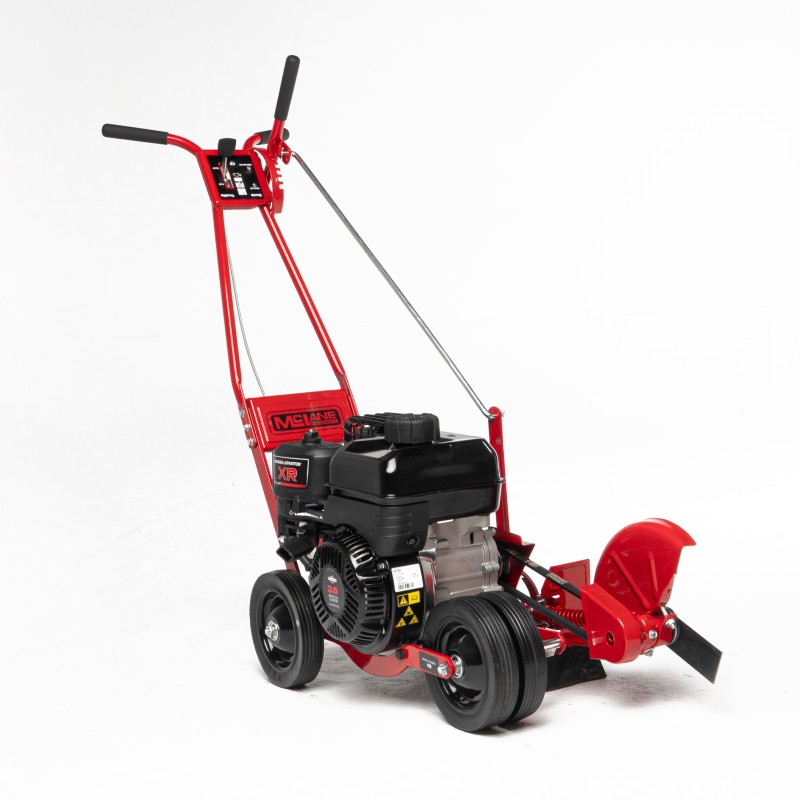

McLane 100-Series commercial walk-behind edger with Briggs & Stratton XR550 engine.

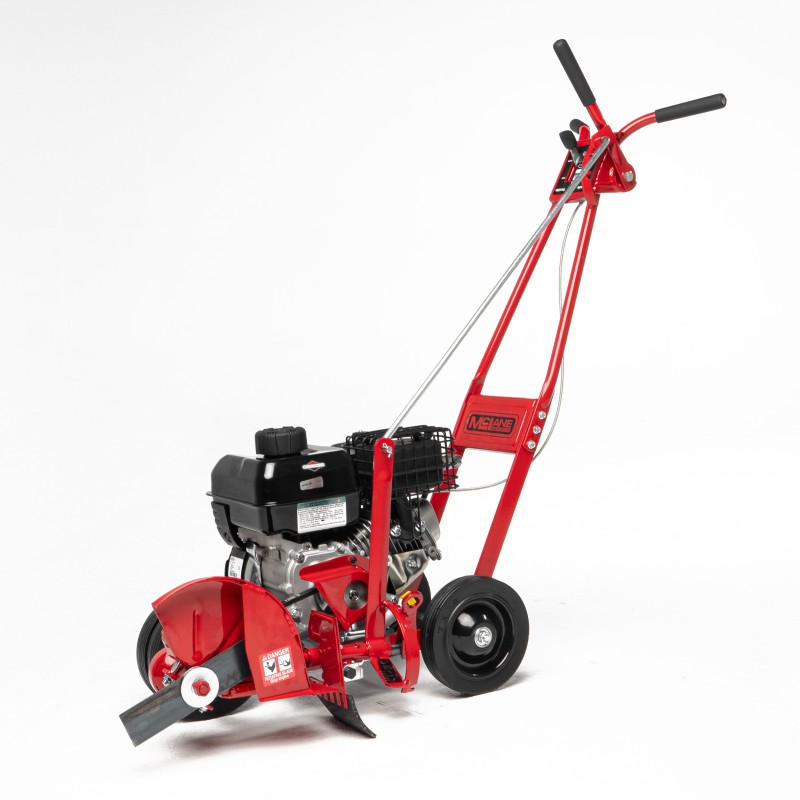

Opposite side view highlighting the heavy-duty steel chassis and 9-inch spring steel edger blade.
Close-up of the reliable 3.5hp Briggs & Stratton XR550 series engine designed for outdoor power.

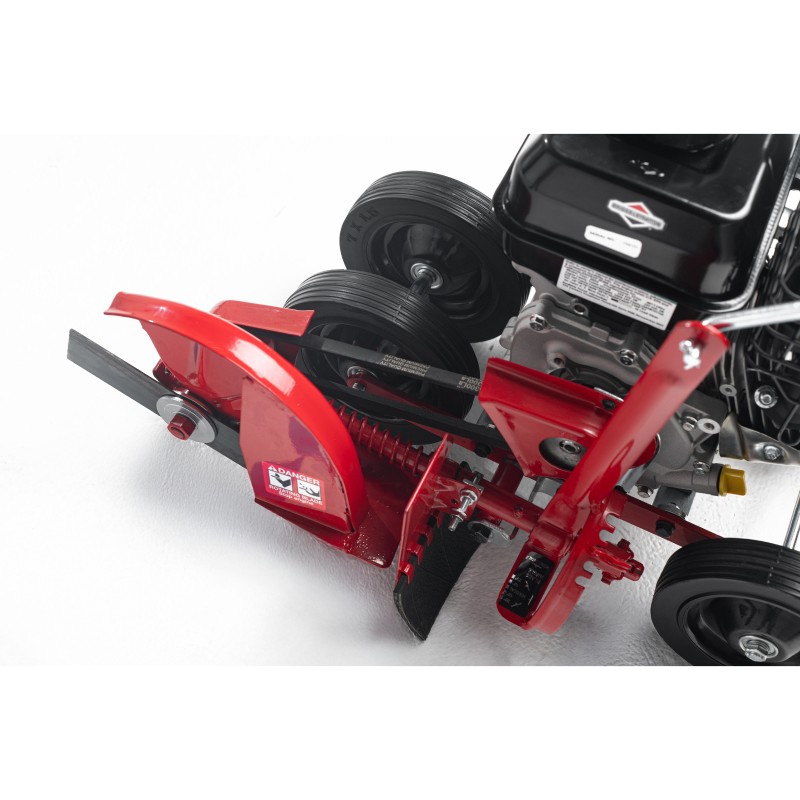

Detailed view of the single belt drive system and the machined tilt-teeth locking mechanism.

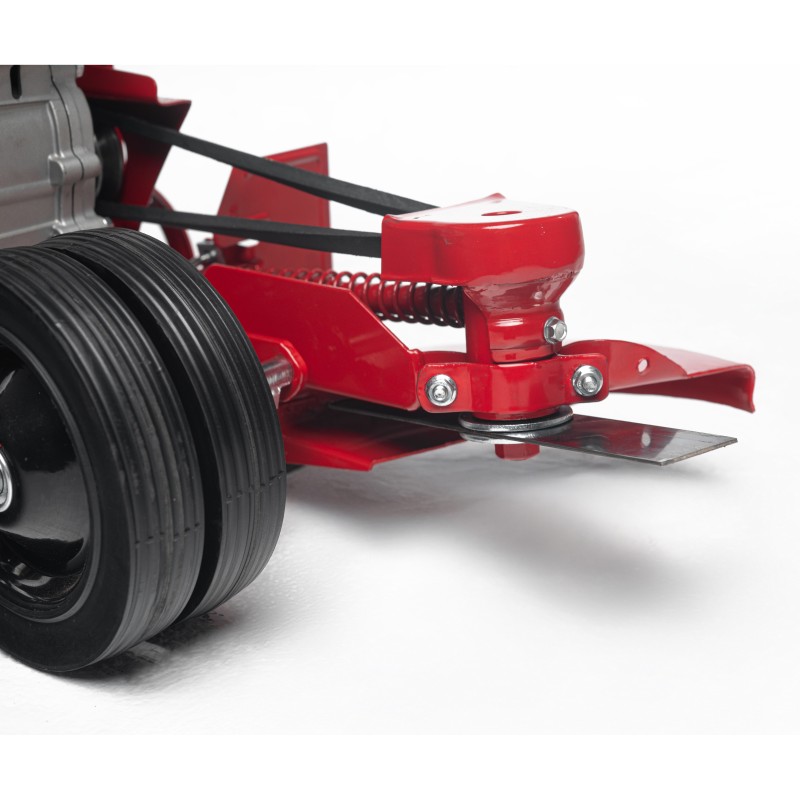

Cutter head tilted flat, converting the machine from a vertical edger to a horizontal trimmer.

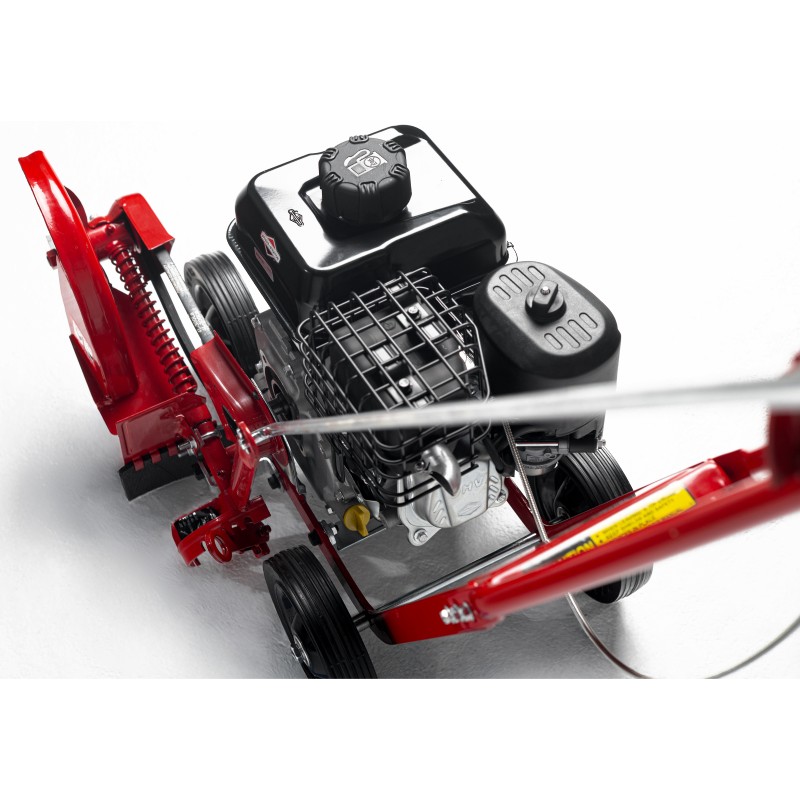

Top-left view of the precision cutter head locked in the standard vertical trenching position.

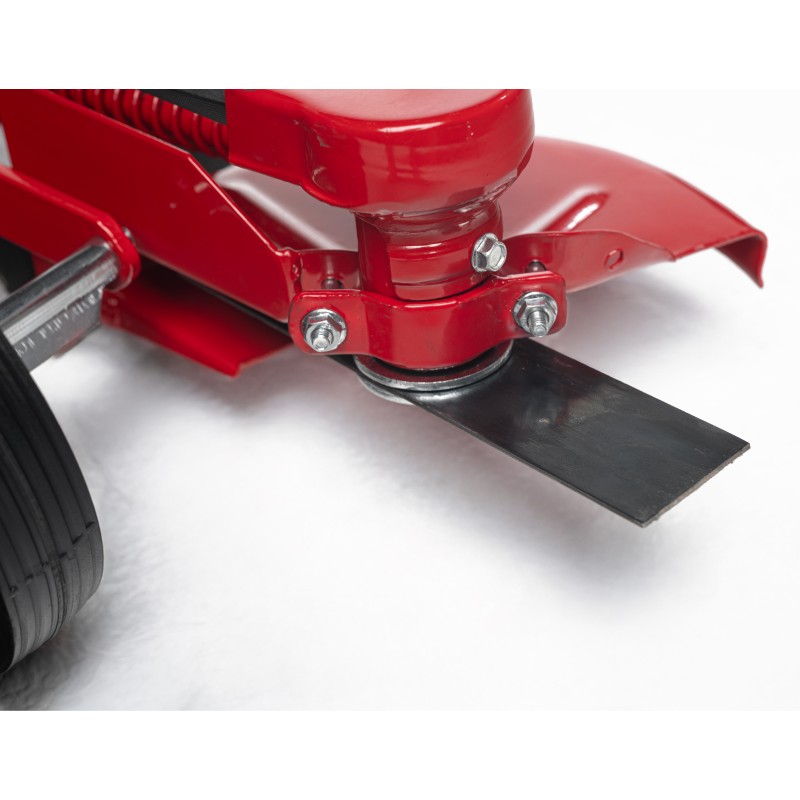

Top-down view of the cutter head, illustrating the rugged belt-drive housing and sealed bearings.

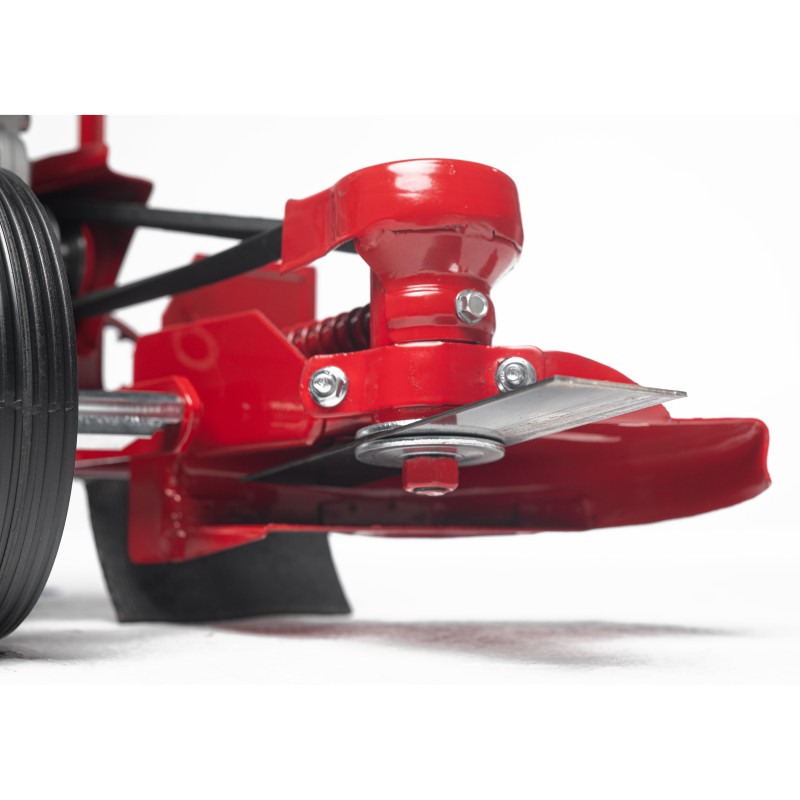

Underside perspective of the edger head, showing the blade mounting and debris clearance path.
Handlebar controls showing the throttle lever and the precise cutting depth selector mechanism.

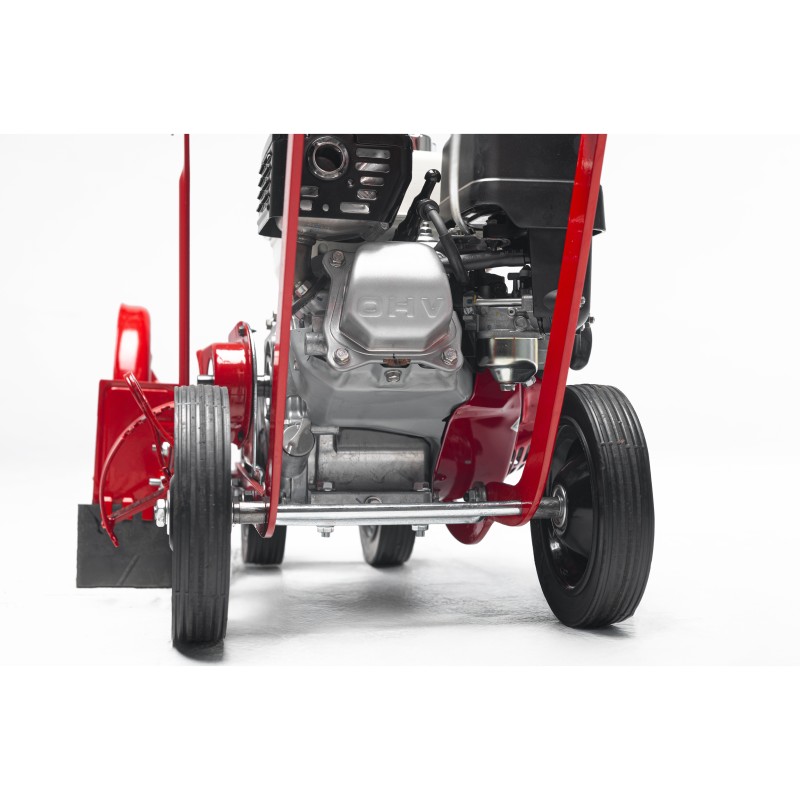

Heavy-duty tubular steel rear axle and wide rubber tires for smooth operation on uneven terrain.
